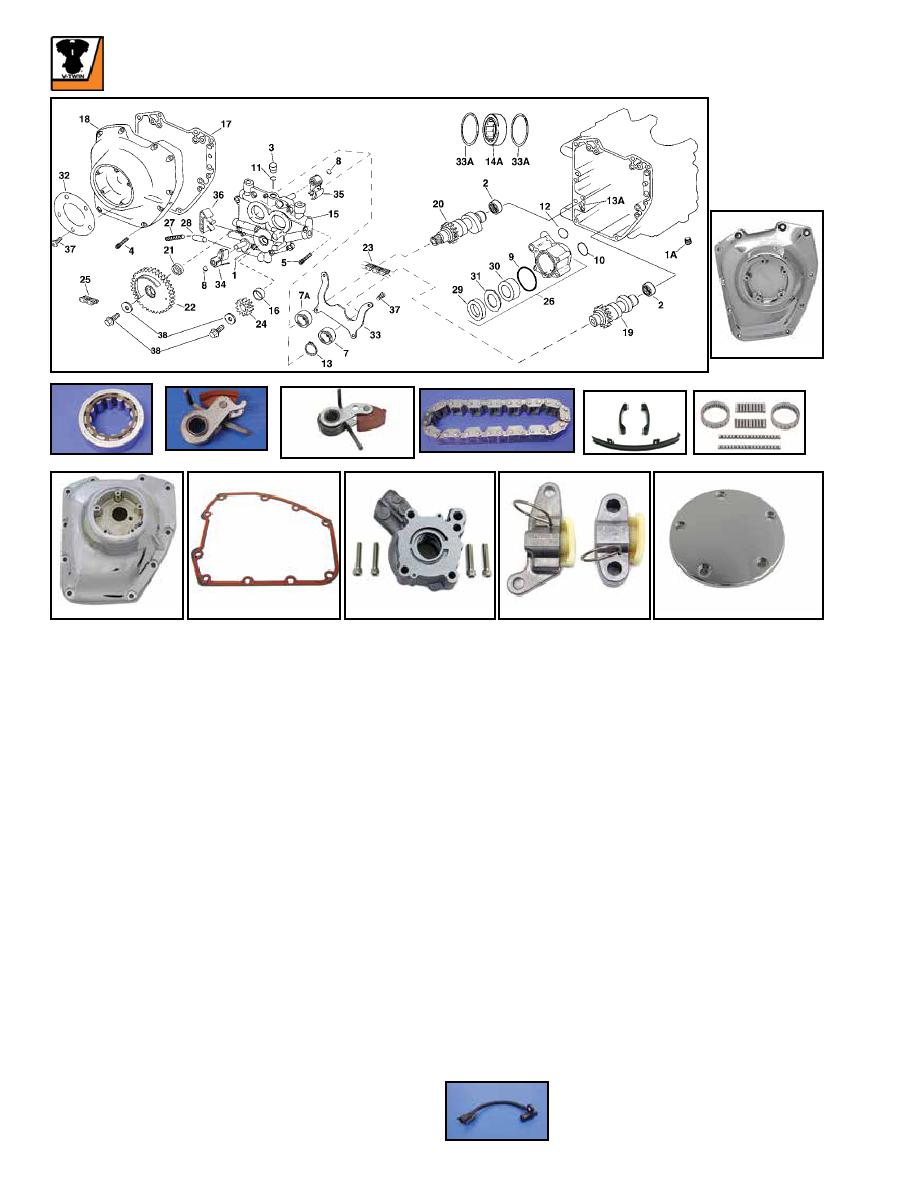

Cam Shaft Components for Twin Cam models, 1999-17 unless noted.
VT No.
OEM
#
Item
12-1178  601
1
Roll Pin
12-0750  9198
2
Left Side Cam Shaft Bearing 1999-05



FXD, 1999-06 FXST, FLST, FLT
12-0765  9215
2
As Above 2006-17 FXST, FLST, FLT
9946-20  4740A
4
Allen Screw Set, As Above
37-1002  4741A
5
Screw, As Above
12-0751  8990A
7
Ball Bearing 1999-05 FXD, 99-06 FXST



FLST, FLT
12-0762  8983
7A
Bearing 1999-05, As Above
12-0905  11031
8
Retaining Ring 1999-05, As Above
14-0814  11286
9
O-Ring 1999-05, As Above
14-0803  11293
10
O-Ring, As Above
14-0819  11298
11
O-Ring, Viton 1999-05 As Above
12-0753  11494
13
Retaining Ring 1999-05 As Above
12-0761  16589-99
13A  Dowel Ring, 1999-17 FXST, FLST, FXD



1999-16 FLT
10-0587  14761-00

Pad Set, TC-88B, 2000-17 FXST, FLST
15-1214  17045-99
14
Cam Service Gasket Kit, 1999-17 FXST,



FLST, FXD,1999-16 FLT
13-0233  18223-98

Performance Valve Spring Set



1999-04 FXST, FXD
12-0754  24623-99C
14A  Right Side Main Bearing 1999-06 FXST,





FLST, FLT, 1999-05 FXD
12-0768  24605-07
14A  As Above 2007-17 FXST, FLST, FLT,



2006-17 FXD
15-1198  25244-99A
17
Cam Cover Gasket, 1999-17 FXST, FLST,



FXD,  1999-16 FLT
10-0813  25247-99
18
Chrome Cam Cover, 1999-00 FXST, FLST,




FXD, FLT
42-0702  25369-01A

Chrome Cam Cover,






2001-17 FXST, FLST FXD, 2001-16 FLT
10-0904  25674-99
21
Cam Drive Spacer, .360 1999-05 FXD,





1999-06 FXST, FLST, FLT
10-0905  25675-99
21
Cam Drive Spacer, .365, As Above
10-0481  25607-99
23
Secondary Cam Drive Chain 1999-05
10-0915  25683-06
23
Secondary Cam Drive Chain 07-17 FXST,




FLST, 2007-16 FLT, 2006-17 FXD
10-0483  25610-99
25
Primary Cam Drive Chain, 1999-05 FXD,




1999-06 FLT, FXST, FLST
10-0917  25675-06
25
As Above 2007-17 FXST, FLST,



2006-17 FXD, 2002-16 FLT
12-9902  26035-99
26
Oil Pump Assembly Cpt 1999-05 FXD,




1999-06 FXST, FLST, FLT
12-9990  26037-06
26
As Above 2006-17 FXD, 2007-17 FXST,




FLST, 2007-16 FLT
12-1418  26400-82B
28
Oil Pump Relief Valve
12-9730  26464-99
29
Georotor Feed, 1999-05
12-9731  26281-06
29
Georotor Feed, 2006-17
12-9732  26255-00
30
Georotor Scavenger, 2000-05
12-1418  26278-06
30
Georotor Scavenger, 2006-17
42-0119  32679-99
32
Sensor Cover, Chrome
12-0760  35115-99
33A  Retaining Ring 1999-01
10-0485  39954-99
34
Primary Cam Drive Chain Tensioner





1999-06 FXST-FLST-FLT,1999-05 FXD
10-0689  39954-99A

As Above with Delcron Shoe
10-0918  39968-06
34
As Above 2007-17 FXST-FLST,



2006-17 FXD, 2007-16 FLT
10-0486  39964-99A
35
2nd Cam Drive Chain Tensioner



L1999-06 FXST, FLST, FLT, BT except





2006-05 FXD
10-0690  39954-99A

As Above with Delcron Shoe
10-0919  39969-06
35
As Above 2007-17 FXST-FLST,



2007-16 FLT, 2006-17 FXD
10-0924
34&  Cam Chain Tensioner Set


35
2007-17 FXST, FLST, 2006-17 FXD,



2007-16 FLT
10-0487  39965-99
36
Chain Guide 1999-05 FXD,



1999-06 FXST, FLST, FLT
9954-5
68042-99
37
Sensor Cover Screw Set
99-17 Cam Shaft Component for Twin Cam
12-0754
Crank Sensor fits 1999-17 FXST-.FLST,
FXD, 1999-16 FLT.
