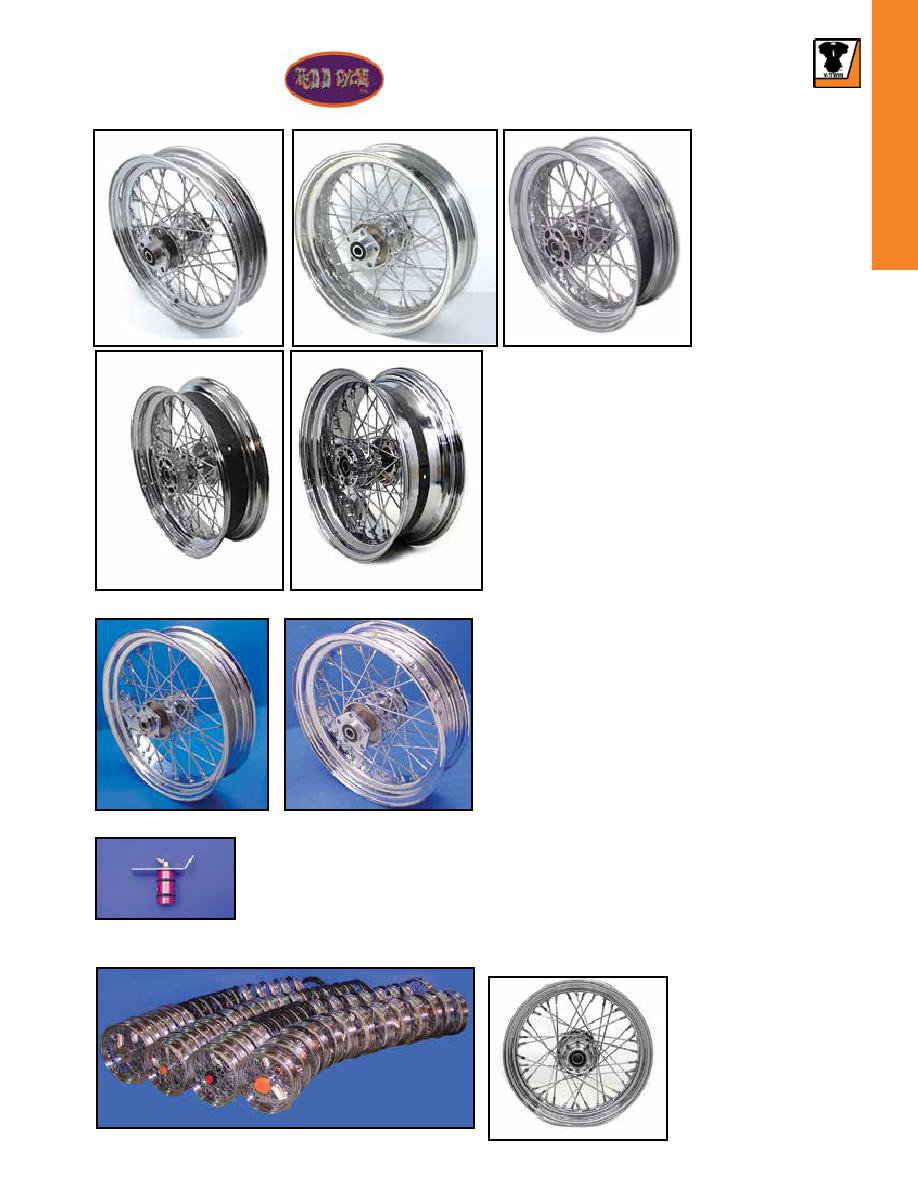

457
BIG TWIN
Complete Wheel
Assembly features the fol-
lowing:
• Chrome Rim
• Chrome or Stainless
Spokes
• Chrome Hub with Internals
• 40 Spoke Style
1997-99 FXD-FXST-FLST Type Rear Wheel
52-2010
17”
Directly bolts on to models listed. Assembled with all original components.
52-2011
52-2033
Since 1969
Wheel Builders
52-0935
18”
Big Twin Rear Wheel
Wheel Bearing Greaser. Fitting
and spigot greases 1973-99 tapered
bearings without removing seals. Use
existing seal spacer or purchase sep-
arately.
VT No.
Item
16-0803 Tool
44-0303 Collar
52-0775
1986-96 FXR-FXRS-FXST-FXSTC-FLST and FXDG models.
Note: FXR applications must use VT No. 44-0421 seal spac-
ers.
Chrome Stainless
Rim
Rim
Spokes Spokes
Diameter
Width
52-0176 52-0810** 16”
3.00”
52-0215 52-0216
16”
3.50”
52-0861* 52-0862*/**
16” Deluxe
3.00”
52-0935 52-0936*
16”
4.00”
52-2042 —
16”
4.50”
52-2033 —
17”
4.50”
52-0198 —
18”
2.50”
52-0775 —
18”
4.25”
1997-99 FXD-FXST-FLST feature updated rear hub with
smooth flange area.
52-1076 52-1077
16”
3.00”
—
52-1079
16”
4.00”
2000-2005 FXD-FXST-FLST
52-1080 52-1082**
16”
3.00”
52-0217 52-0218
16”
3.50”
52-1081 52-1083**
16”
4.00”
52-2044 —
16”
4.50”
2006-07 FXD
52-2010 52-2011 17”
4.50”
2008-17 FXST, FLST, FXDWG without ABS
52-2041 —
16”
3.00”
52-2087 —
17”
6.00”
2011-17 FXST, FLST, FXDWG with ABS
52-2057
16”
3.00”
52-2058
17”
6.00”
2008-17 FXD without ABS
52-2040 52-2045 17”
4.50”
2012-17 FXD with ABS
52-2059 17”
4.50”
1982-84 FXE, 1982-86 FXWG, 1982-85 FXR,1984-85 FXST
52-0168 52-0809** 16”
3.00”
*Note: Deluxe rims are OE type.
**Note: Polished Stainless Steel Spokes
52-2087
52-2057
52-0176
