4-Speed Big Twin Transmission
Notes:
1.
1-2 Cluster has no rear counterbore and requires short length 1936-58 early third gear.
2.
V-Twin gear has bronze bushing. Andrews gear is machined to size no bushing is used.
3.
Motor Shop and Andrews Gear features ball milled lead in ramps. Can be used in early transmission, requires
late type 1959-85 1-2 Cluster.
4.
Replacement for 1.35:1 3rd Gear Set only.
5.
Andrews Gear is updated type with O-Ring groove.
6.
Sifton and Andrews Shift Forks sold in sets only included 1 each, lead main and counter.
7.
Use VT No. 36-0810 Speedometer Drive for 17-9160 use 36-0812 drive for 17-0094.
8.
For Rear Belt Drive Models
9.
Stock FX ratio
10. Stock FL ratio.
11. Does not include Mainshaft and Countershaft
Reverse and 3-Speed Big Twin Transmission Parts
VT No.
OEM
Description
17-9877
33626-72
H. Shift Mirror Mount
43-9106
34800-65
3-Speed Lid Assembly
17-9888
35073-70
Low Gear Mainshaft
17-9890
35762-39
Countershaft Low, 3-Speed and Reverse
17-9892
36140-36
Idler Gear
17-9893
36150-31
Bushing Idler Gear
17-9894
36158-36
Idler Shaft
12-1520
35703-39
Cluster Gear
17-9815
35775-39
Countershaft Gear
Gear
#of Teeth
Ratio Model Year
VT No.
Motor Shop Jims
Andrews OEM
Note
#
Mainshaft Gears
1st and 2nd 15 x 20
Stock UL/FL
1938-58
17-0539 —
—
17-1093 35282-36 1
A
1st and 2nd 15 x 20
Stock FL/FLH 1959-84
17-0197 —
—
17-1091
35282-59
A
1st and 2nd 17 x 20
Stock FX/FXE 1974-79
17-0198 —
—
—
35282-74
A
1st and 2nd 17 x 25
Stock FX/FXE 1980-85
17-0542 —
—
—
35282-79
A
3rd
24
Stock UL/FL 1938-58
17-9829 —
—
17-1048 35306-36 2
B
3rd
24
Stock FL/FX 1959-85
17-0188 —
—
—
35306-59
B
3rd
24
Stock FL/FX
1959-85
—
17-0545
—
17-8230
35306-59 3
C
3rd
23
1.35:1 FL/FX 1937-85
17-9901 —
—
17-9755
4
B
4th
26
Stock FL/FX 1941-76
17-0194
—
17-8231
35065-65B
D
4th
26
Stock FL/FX 1977-85
17-0195 17-0253
—
17-8232 35067-77 5
D
3-4 Shift Clutch
FL/FX
1941-85
17-0113 17-0114
—
17-8234
35440-38
E
3-4 Shift Fork
FL/FX
1941-85
17-0115 17-0122
—
17-9750 34158-36 6
F
Countershaft Gears
1st
26
Stock UL/FL 1936-85
17-0199 —
—
17-1092
35765-36
G
1st
24
Stock FX/FXE 1974-85
17-0196 —
—
—
35717-74
G
2nd
21
Stock FL/FX 1936-85
17-0782 —
—
17-8229
35751-36
H
2nd
24
Stock FXWG 1980-85
17-9753 —
—
—
35751-79
H
3rd and 4th 15 x 17
Stock FL/FX
1941-75
17-0200 —
—
17-8236
35713-36
I
3rd and 4th 15 x 17
Stock FL/FX
1976-84
17-0201 17-0253
—
17-8237
35716-76
I
1-2 Shift Clutch
FL/FX
1941-85
17-0112 17-0114
—
17-8233
35665-36
J
1-2 Shift Fork
FL/FX
1941-85
17-0116 17-0122
—
17-9750 34159-36 6
K
Speedometer Drive
FL/FLH 1937-E61
17-9160 —
—
—
35635-36
L
Speedometer Drive
FL/FLH L1961-68
17-9161 —
—
—
35635-62
L
Speedometer Drive
FL/FLH 1969-80
17-0094 —
—
— 35635-69 7
L
Counter/Mainshafts
Mainshaft
FL/FLH 1937-64
17-0139 17-0223
—
17-8500
35040-50
M
Mainshaft
FL/FLH 1965-69
17-0140 17-0224
—
17-8501
35040-65
M
Mainshaft
FL/FX 1970-84
17-0141 17-0142
—
17-8502
35039-70
M
Mainshaft
FL/FX L80-E84
17-0144 —
—
—
35039-80
M
Mainshaft
FL/FX
1985-86
—
—
—
17-8503 35039-85 8
M
Countershaft
FL/FX 1936-75
17-0128 17-0325
17-0125
17-7650
35614-65
N
Countershaft
FL/FX 1976-79
17-0129 17-0326
17-0131
17-7651
35614-76
N
Countershaft
FL/FX 1980-85
17-0130 17-0327
17-0138
17-0137
35614-80
N
Gear Sets
1st
17 x 20
2.44:1 FL/FX 1937-85
17-0190 —
—
17-8225
—
9 A,G
1st
16 x 20
2.60:1 FL/FX
17-0191 —
—
17-8226
—
A,G
1st
15 x 20
3.00:1 FL/FX 1938-58
17-0202 —
—
—
—
A B
1st
15 x 20
3.00:1 FL/FX 1938-58
—
—
—
17-1052
—
1, 10 A,G
1st
15 x 20
3.00:1 FL/FX 1959-85
—
—
—
17-1049
—
10 A,G
1st and 2nd (2.24 1st and 1.65 2nd) FL/FX 1937-85
17-0060 —
—
17-6656
—
A,G
3rd
1.35:1 FL/FX 1937-75
—
—
—
17-8227
—
B, I
3rd
1.35:1 FL/FX 1976-85
17-9158 —
—
17-8228
—
B, I
Complete Gear Sets include A, B, C, D, E, F, G, H, I, J
2.44 1st, 1.35 3rd
FL/FX 1936-76
—
—
—
17-6000
—
11
2.44 1st, 1.35 3rd
FL/FX 1977-84
—
—
—
17-6004
—
11
2.44 1st, 1.23 3rd
FL/FX 1936-76
—
—
—
17-6001
—
9, 11
2.44 1st, 1.23 3rd
FL/FX 1977-84
—
—
—
17-6005
—
9, 11
2.60 1st, 1.35 3rd
FL/FX 1936-76
—
—
—
17-6002
—
11
2.60 1st, 1.23 3rd
FL/FX 1936-76
—
—
—
17-6003
— 11
2.60 1st, 1.23 3rd
FL/FX 1977-84
—
—
—
17-6007
— 11

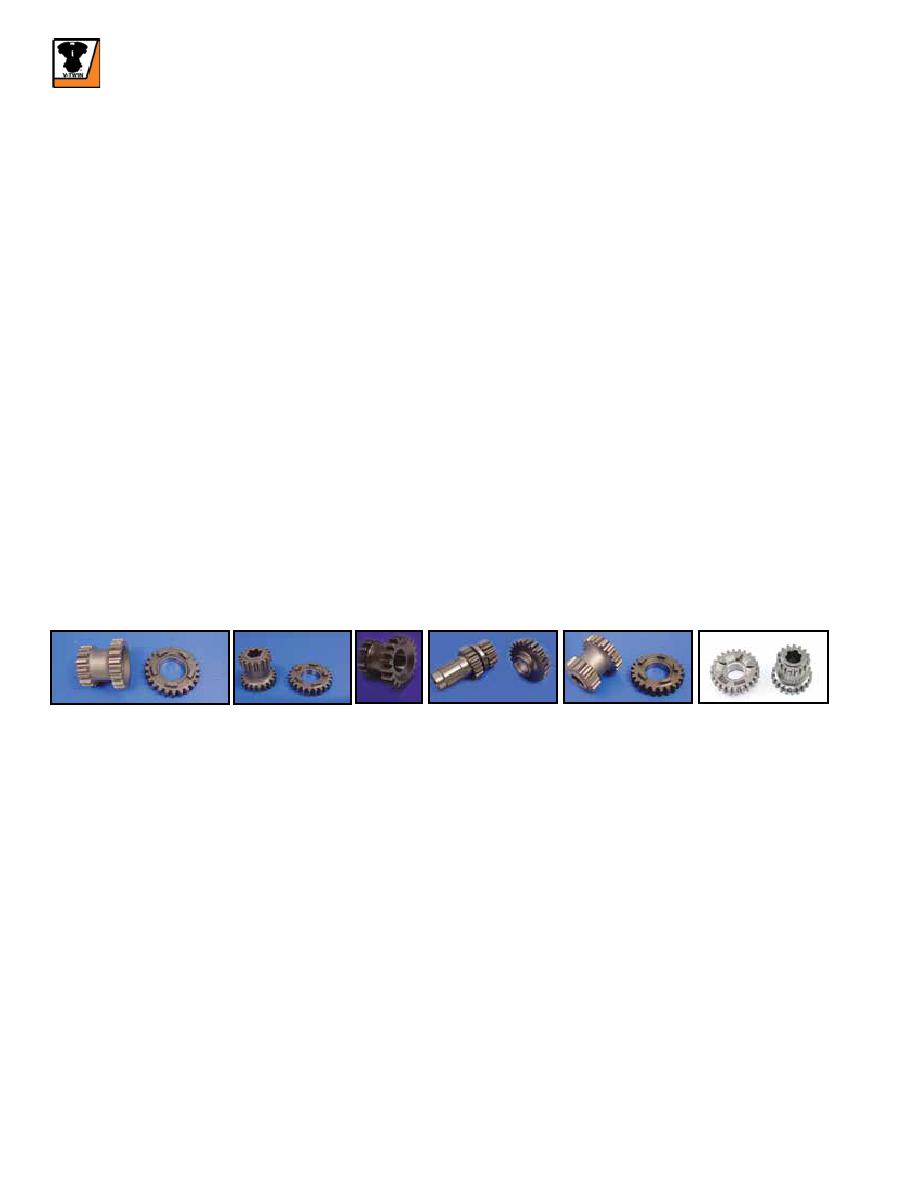

Refer to opposite page for photo regarding this listing.
17-0190
17-8226
17-0539
17-9158
17-0191
17-0202
