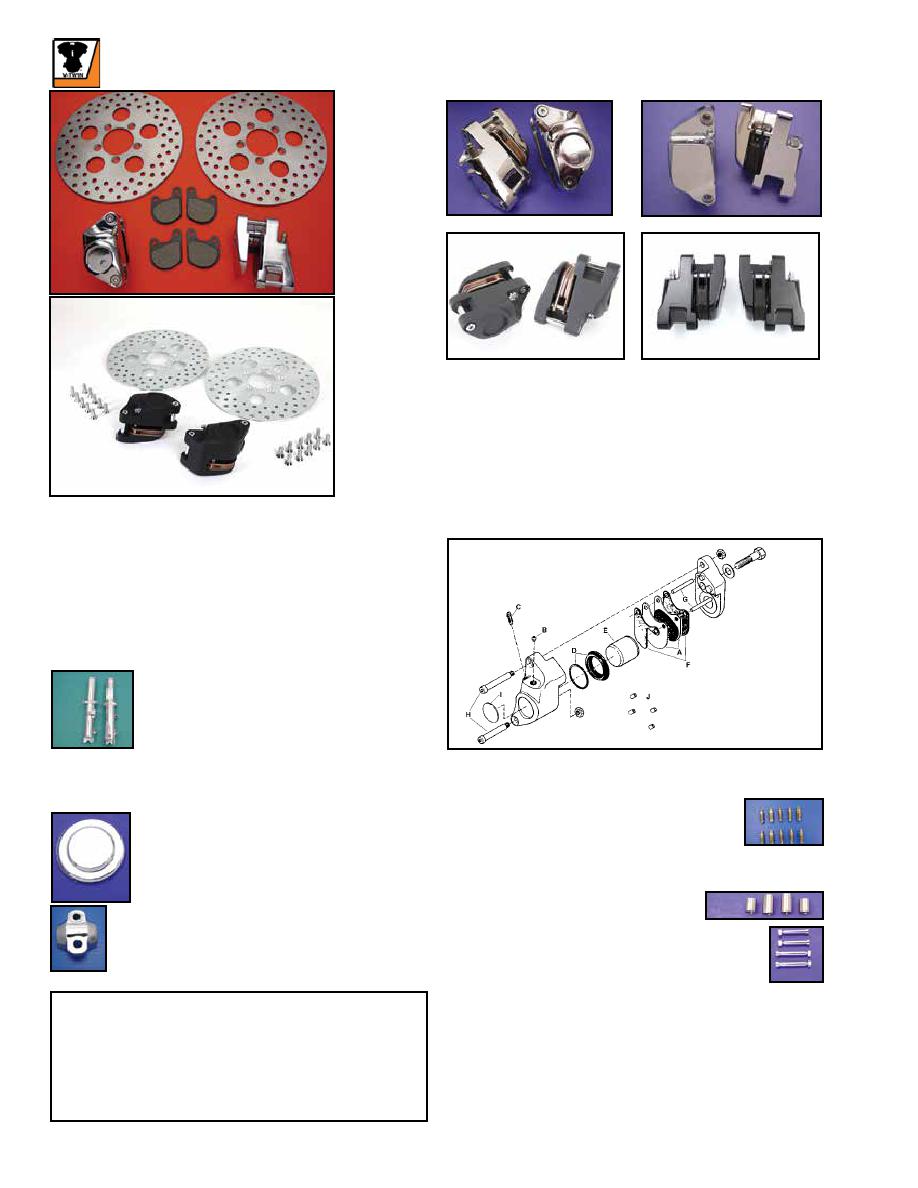

Dual Disc Front Caliper 1977-83 FX
1977-83 FX Dual Disc Caliper Hardware.
VT No. # OEM
Item
23-0509 A 44098-77 Pad Set (4)
23-9198 B 44141-77 Seat, brake hose
23-1731 C 44146-77 Bleeder Fitting
23-0607 D 44151-77 Seal, piston
44153-77
23-2278 E 44157-77 Piston
23-0523 F 44158-77 Plate, Outer
44161-77 Plate, Inner
23-1734 G 44162-77 Pin
24-0602 H 44173-77 Screw
44174-77
37-8970 I —
Chrome Insert, Each
24-0603 J 46018-77 Mount Bushing Set
46019-77 Set of four, lower (2), upper (2)
Chrome Dual Rotor Caliper and Rotor Set includes two
chrome calipers and two drilled rotors. Fits 1977-83
.
VT No.
Item
Rotor
23-0250 Caliper Rotor Set Zinc Steel
23-0258 Caliper Rotor Set Polished Stainless Steel
23-0259 Caliper Rotor Set Stainless Steel
23-1214 Caliper Rotor Set Zinc Steel
Black
8831-10* Bolt Set FXWG
8758-10 Bolt Set XL-FX
*Note: Two kits required.
Dual Disc Front Disc Calipers includes body, piston, seals.
Dual type fits 1977-83 FX-FXWG with 10” brake discs. Order
mounting hardware separately.
VT No.
Side
Finish
Style
23-2221 Right
Black
A
23-1121 Right
Chrome
A
23-2238 Left
Black
A
23-1119 Right and Left
Flat Black
A
23-1122 Right and Left
Black, ET
B
23-2220 Right and Left
Chrome, Daytona
B
23-0550 Right and Left
Chrome, ET
A
23-2220
B Style
A Style
23-0259
23-0550
Chrome Lower Slider Set Only fits 1977-82
dual disc 35mm forks.
VT No. 24-0541
Chrome Round Caliper Insert fits 1977-83
dual calipers.
VT No. 37-8970
37-8970
Caliper Inserts
Narrow Glide Axle Cap with alloy finish. Fit 1973-83
FX models with 35 and 39 mm fork tubes.
VT No. OEM
Fits
24-0505 45410-75 Left
24-0504 Chrome Left
24-0603
24-0602
24-1731
Thread Chart
OEM Rear Master Cylinders
Kelsey-Hayes. Late 1979-84 FL, FX; 80-85 FXWG, FLT
3/8-24 Inverted Flare
Wagner-Lockheed. 58-Early 79 FL, FX
3/8-24 Inverted Flare
(Girling type) 83-Early 87 FX, 1982-Early 87 FXR
3/8”-24 Inverted Flare (to caliper)
1/8” NPT (to reservoir master cylinder)
All Late 1987-2002 Big Twin , TC/B, XL
3/8”-24 banjo bolt
All H-D Brake Tees
3/8”-24 Inverted Flare (brake line)
1/8 NPT (brake light switch)
