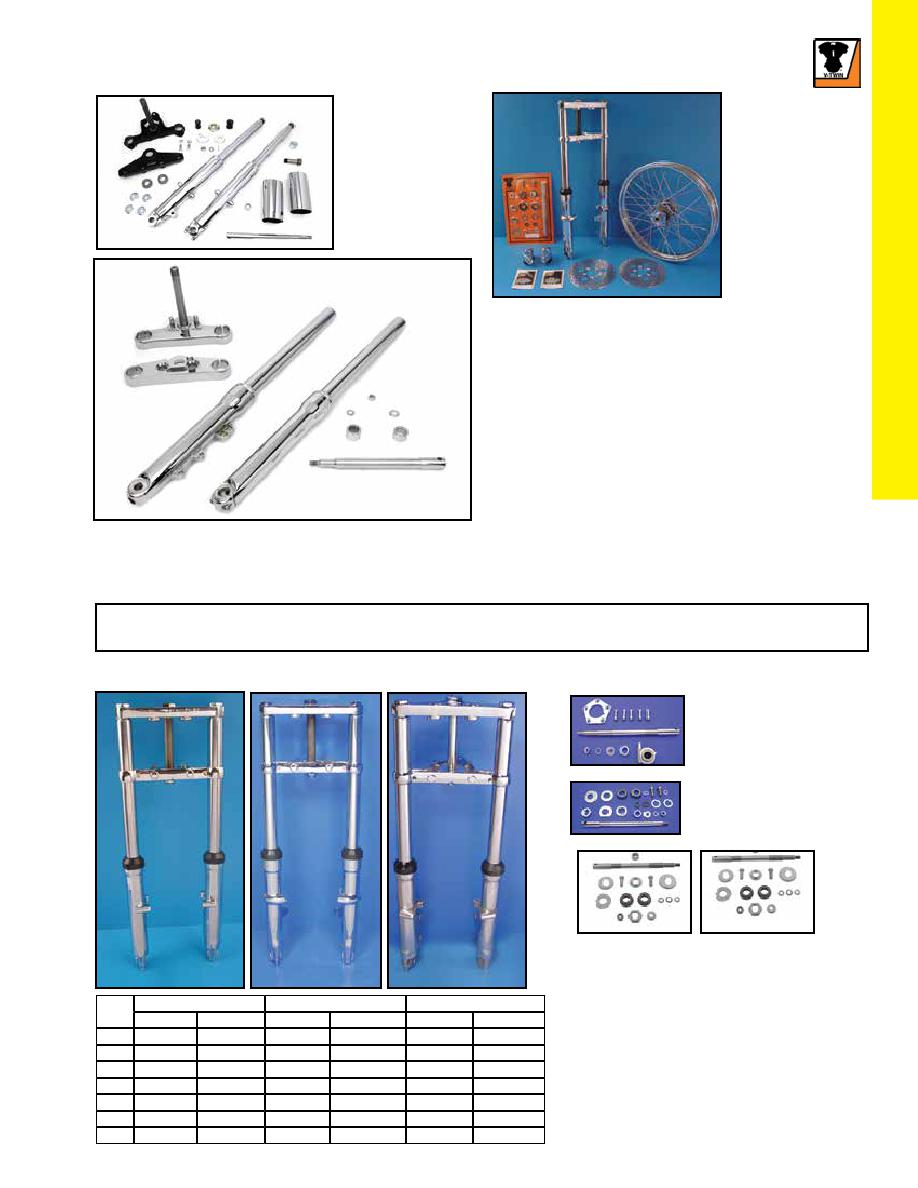

597
CLASSIC
(A) FXWG, Dual 10” (B) FXST, Single 11.5” (C) FXST, Dual, 11.5”
Polish
Chrome
Polish
Chrome
Polish
Chrome
Stock 24-1500 24-1525
—
24-1532
24-1501
24-1546
2”
24-1503 24-1526
24-1509
24-1533
24-1515
24-1540
4”
24-1504 24-1527
24-1510
24-1534
24-1516
24-1541
6”
24-1505 24-1528
—
24-1535
24-1517
24-1542
8”
—
—
24-1512
24-1537
24-1518
24-1543
10”
—
—
—
—
24-1519
24-1544
12”
—
—
24-1514
24-1539
24-1520
24-1545
41mm Glide Fork
Assemblies include
forged chrome replica
triple trees and hard
chrome tubes on stock
length forks, chrome
tubes on overstock
length and polished or
chrome lower legs with
all internals installed
less hardware. Stock
overall length is 31”.
Fork Installation Kit includes two
bearings, dust covers, top nut axle
and related hardware. Fits 1980-83
FXWG with dual disc.
VT No. 24-0776
Bare Fork Assembly includes stock leg assembly with hard
chrome tubes on stock length forks and chrome tubes on
overstock length and polished or chrome lower legs with
all internals installed, with chrome triple tree set, less hard-
ware. Stock overall length is 31”.
FXWG Style Dual Disc Fork/Wheel and Caliper
Assemblies to fit 1948-99 Big Twin FL-FX-FXWG feature
polished or chromed lower sliders without reflector boss, hard
chrome fork tubes and internals installed. Includes chrome
trees with 1” diameter stem and frame lock tab, neck bear-
ings, axle spacer and top nut. Stock length is 31” overall. Kit
also includes 21” all chrome assembled wheel with bearings,
drilled 10” steel brake discs with chrome screws, and choice
of black or chrome dual disc calipers complete with pads. VT
No. 24-9947 has smooth lower legs.
VT No. Item
Caliper
Sliders
24-2000 Kit
Chrome
Polished
24-2011 Kit
Chrome
Chrome
Fork Assembly Only
24-0779 Fork Assembly
Polished
24-9947 Fork Assembly
Polished
Fork Installation Kit fits 1973-84 FL, 1980-83 FXWG.
VT No. 24-0776
24-2011
Kit
FXWG Dual Disc Fork Assembly
Front Wheel Speedometer Drive Kit
will allow use of 2:1 ratio speedometer.
Kit includes axle, speedometer drive
and adapter flange.
VT No. 36-0547
24-9974
Fork Only
24-1532
24-1525
24-1501
The V-Twin
TM
Fork Assembly is shipped complete with axle, axle nut, spacer, top nut, bearings, cone nut, dust cover, triple trees, fork tubes and sliders. Fork tubes
and sliders are fully assembled with internals. Final assembly of the remaining components is done by the dealer. Every leg assembly is shipped dry. We recommend
use of the appropriate fork oil such as Type B. The amount of fork oil to add varies by model. A FX will need about 6 oz per leg, a FL will need about 8.5 oz per leg and
a FXWG needs about 10 oz per leg. Due to oil cling, a dry fork leg needs about 1 oz more to fill than a drained leg would require.
Bare Fork Assembly
Fork Installation Kit includes two bearings, dust covers, top
nut, axle and related hardware.
VT No.
Type Year
Model
24-0776
2 Disc 1980-83 FXWG
24-0774
1 Disc 1984-99
FXST
24-0833
1 Disc 1986-99
FLST
24-0772
2 Disc 1984-99
FLT
24-1158
2 Disc 2000-07
FLT
24-0773
2 Disc 1986-99
FLST
49mm Fork Assembly includes chrome upper and lower
trees with stock tubes and chrome sliders. Fits 1971-99 FX.
VT No. 24-1319
41mm 10” Dual Disc Fork Assembly
Glide Fork Assembly
with chrome sliders
accepts left side drum
brake. Assembly fea-
tures black triple trees
without lock tab and 3”
center to center spac-
ing which will accept
rubber bushing kit.
VT No. 24-0867
24-0776
24-0774
