867
XL
4-Speed
Main Shaft
Hardware
XL Transmission Rollers. Available in
set of 23 or 100.
23 Pack 100 Pack OEM
Size
17-1147
9095 Standard
17-1148 12-4588 9096 .0004
17-1149 12-4589 9097 .0008
XL Mainshaft
Andrews VT No.
OEM
Fits
17-8080
17-1165 35044-56
1956-66 KH-XL-XLH-XLCH
1967-69 XLCH
—
17-1166 35046-67
1967-70 XLH, 1970 XLCH
17-8120
17-1167 35046-71A 1971-E84 XLH-XLCH
—
17-0143 35046-71A As Above, Sifton
17-8121
17-9982 35036-84A 1984-90 XLH
17-9180
17-9183 35640-89
1991-05 XLH
—
17-0723
2006-up XL
Oil Seal and Retainer Kit. Metal
retainer with seal. Replaces 35150-52,
includes gasket and screws. Fits all
1952-Early 1984.
VT No. 17-1160
17-1167
17-1166

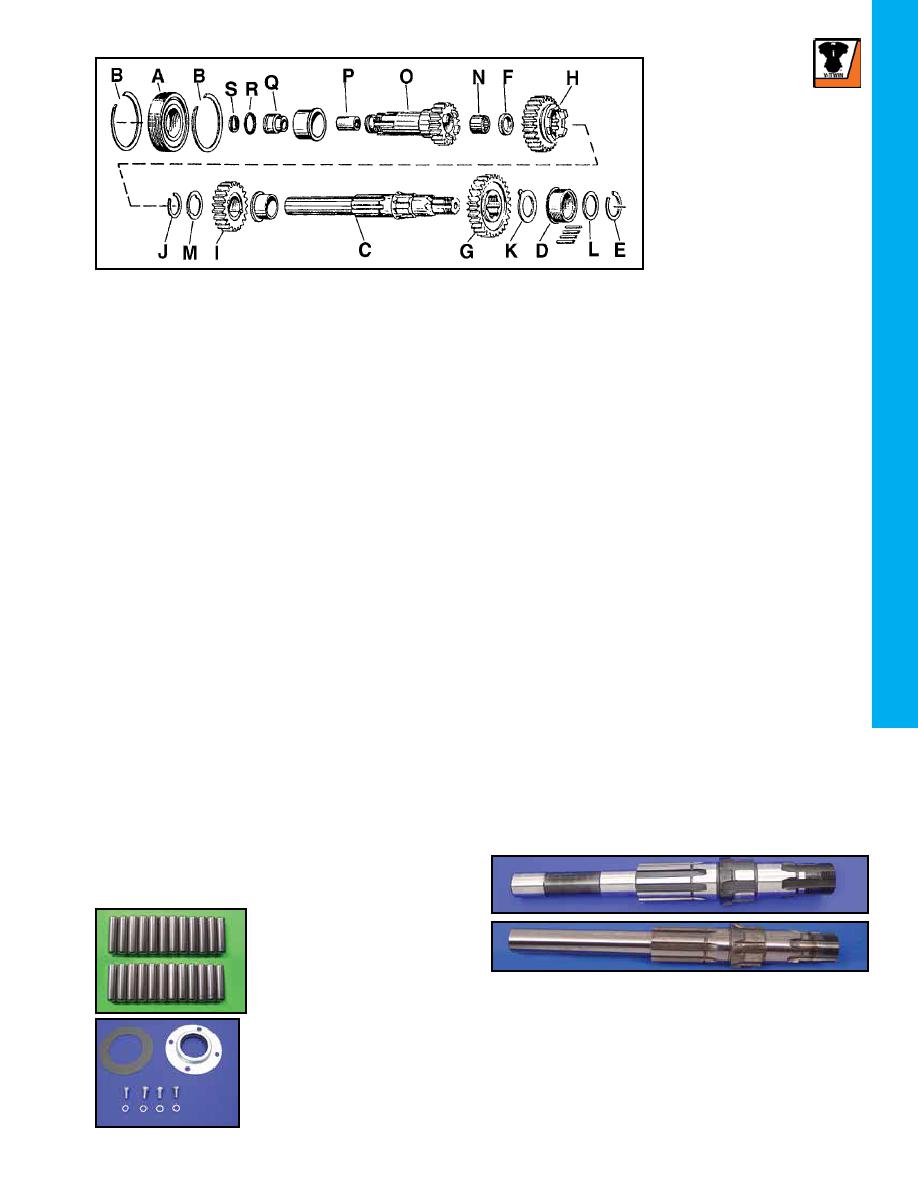

Main Shaft Hardware
VT No.
OEM
# Item
12-0308 9025A
A Ball Bearing, each
12-9936 9025A
A As Above, Torrington
12-0378 35030-89
A Ball Bearing, 1989-up 5-Speed
12-0958 11006
B Retaining Ring Inner, 1986-up
12-0965 11180
B Retaining Ring, 1984-90 Outer
12-0930 35112-52
B Retaining Ring, 1954-Early 84
12-0966 35112-84
B Retaining Ring Inner, Late 1984-85
17-1165 35044-56
C Mainshaft, 1956-69 XLCH-XLH
1967-69 XLCH
17-8080 As above
C Andrews
17-1166 35046-67
C Main Shaft, 1967-70 XLH
17-1167 35046-71A C Main Shaft, 1971-E84, XL’s
17-8120 As above
C Andrews
17-9982 35036-84A C Main Shaft 1984-90 XL’s
Main Shaft Oil Seals
17-1160
1952-E1984
14-0150
L1984-1990
XL Trans Main Bearing Race.
VT No.
OEM
# Years
Size
17-1136 35105-52 D 1954-83
Standard
17-1178 As Above D Jims
Standard
17-1137 —
D 1954-83
.002
17-1138 —
D 1954-83
.005
17-1180 As Above D Jims
.005
17-1139 —
D 1954-83
.010
17-9912 —
D 1954-83
.020
17-9924 35105-83
D E1984 only
Standard
17-9925 —
D E1984 only
.005
17-9927 —
D E1984 only
.002
12-0359 9118
DD 1984-90
Bearing
12-0361 8996
DD 1991-2005
Bearing
17-1182 35041-84 D L1984-90
Standard
17-1183 —
D L1984-90
.002
17-1184 —
D L1984-90
.005
12-0931 35113-52
E Retaining Ring 1954-Early 84
17-9913 35216-79
F Thrust Washer
.212
17-1125 35361-56
F Thrust Washer
17-1122 35277-52A G M.S. First Gear, 1954-86, 27T
17-1050 As Above G Andrews
17-8242 35296-56A H M.S. Second gear, 1956-90, 23T
Andrews
17-1120 35305-56A I M.S. Third Gear 1956-90, 20T
17-8244 As above
I Andrews
12-0932 35337-56
J 1956-up Snap Ring
17-1128 35326-73
K Thrust washers .080, 54-78, 5 pack
17-9752 35326-Set K Set 15 pc .030-.125 54-78 Right
17-9236 35385-84
K .067 Right Side 1984-90, 5 pack
17-9237 35384-84
K .072 As above
17-9238 35383-84
K .079 As above
17-9239 35382-84
K .084 As above
17-9240 35381-84
K .090 As above
17-9241 35380-84
K .096 As above
17-9247 35385-Set K 1984-90, .067-.096, Six Piece Set
17-9930 35360-Set K 1979-83, .098-.125, Four Piece Set
17-1129 35363-52
L Thrust washer
17-1127 35364-56 M Thrust washer
17-0089 35356-86 M Thrust washer
12-0327 35961-52
N Needle Bearing
17-1140 37449-56 O Clutch gear 1956-66 XLH-XLCH
1967-69 XLCH
17-1141 37448-67 O Clutch gear 67-70 XLH, 70 XLCH
17-1142 37448-71 O Clutch gear 1971-E79 XL
17-8710 As above
O Andrews
17-9760 37448-79 O Clutch gear Late79-E84 XL includes
P, N installed
17-8711 As Above O Andrews
17-9826 37448-84A O Clutch Gear Late1984-86, All
17-9146 37448-87 O Clutch Gear 1987-90
17-4850 As Above O Andrews Set (Two Piece)
10-0751 37458-52
P Bushing, Clutch Gear
10-0764 37538-56 Q End Bushing Clutch Gear
14-0502 11103
R O-Ring
14-0127 37531-56B S Seal
